That's the way the concrete crumbles




Reinforced concrete has been one of the materials that have revolutionized the construction industry, paving the way for modern era in architecture. The possibility to be easily poured and molded into any shape, accompanied with its strength, durability and low-price, makes it a favorable choice for the majority of structures build in the last century. In existing residential buildings, it forms a number of structural elements such as walls, slabs, columns, support beams, posts and staircases.








Early 20th-century engineers thought reinforced concrete structures would last a very long time – even up to 1,000 years. In reality, their life span is significantly shorter, depending on the quality of the production and maintenance it can last 50 – 100 years. Although we expect a building to survive for several decades, the process of decay can start in as little as 10 years. Overtime, concrete is susceptible to deterioration due to several factors which could harm the material, reduce its strength and create unsafe conditions.








The main degradation of a concrete structure is caused when water, air or salt, come in contact with the embedded reinforcing, leading to internal damage in the shape of corrosion. In addition to decay of the iron reinforcement itself, the rust affects the surrounding concrete, causing cracking, delamination, and spalling. As the material cracks and crumbles, more water and air contact the reinforcing steel causing even greater harm.




Concrete damages

Concrete damages




Concrete damages on an exterior slab

Concrete damages on an exterior slab





Earlier sub-standard construction methods have deemed these structures to be prone to early decay. The common use of sea salt or other chemicals, meant to speed up the hardening process, provoke the steel reinforcements to gradually corrode over time. Secondly, the incorrect choice or positioning of the reinforcement bars causes cracks which open the way for additional water infiltration and eventual corrosion.

In the case of mid-20th century buildings, although most of the concrete elements were being waterproofed, a lack of elasticity in their membranes resulted in severe cracks. Additionally, the detailing of some elements like balustrades often included joints to the slabs which were drilled also through the waterproofing. Such fractures or punctures of the membranes make the membranes penetrable leading to an even faster decay.

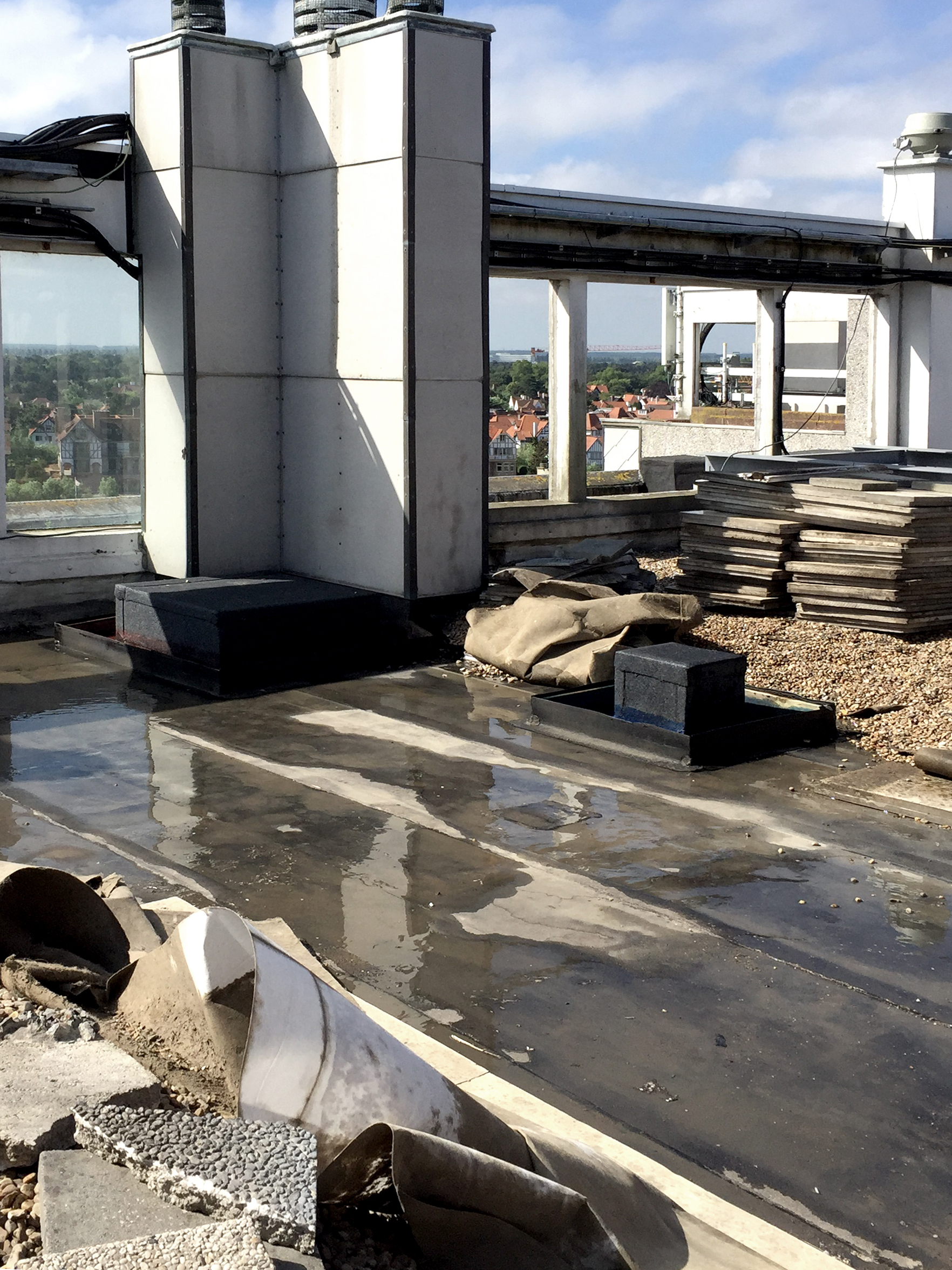

2018-06-26 10.24.57.jpg






However, concrete restorations enable us to fix the structures and bring them back to their original quality. This way, we can stop the degradation process and ensure the construction remains in great condition for years to come. Besides improving its structural and safety aspects, the repair enhances the appearance of the property, raising its value on the real estate market.

Many owners believe that in order to repair the structural damage, it is obligatory to replace or remove entire sections of the building. While it may be necessary in some cases of extreme damages, it is certainly not the only solution to such problems.

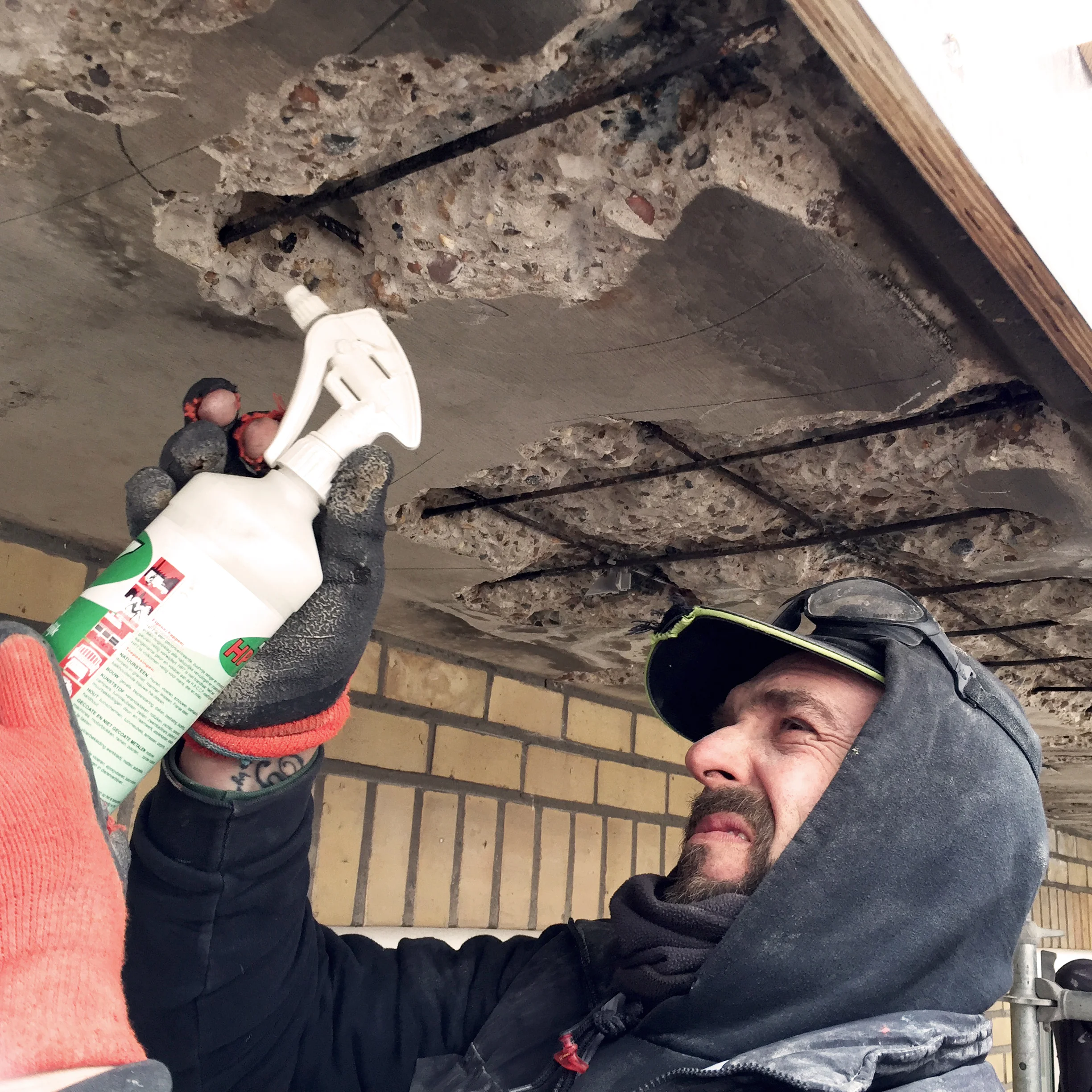

2017-02-21 13.40.42 HDR.jpg





Nowadays, with new techniques being developed constantly, there are many efficient ways of restoring damaged concrete elements. One such example is “Galvashield Fusion T2”, a method which repairs concrete rot and crumbles without complex wiring or external supplies of electricity.

The procedure consists of drilling holes in the concrete and inserting type 2 anodes, which attack the cause of corrosion with a powerful dose of electrochemical treatment. This way the structure is being preserved without the need of additional monitoring or maintenance. Moreover, “Galvashield Fusion T2” provides the flexibility of application based on the requirements, as it can repair the entire structure or just the extreme corrosion hotspots.

With every individual restoration case being different, there are corresponding methods for repair. However, a timely detection and intervention is crucial for a less complicated and economically reasonable procedure

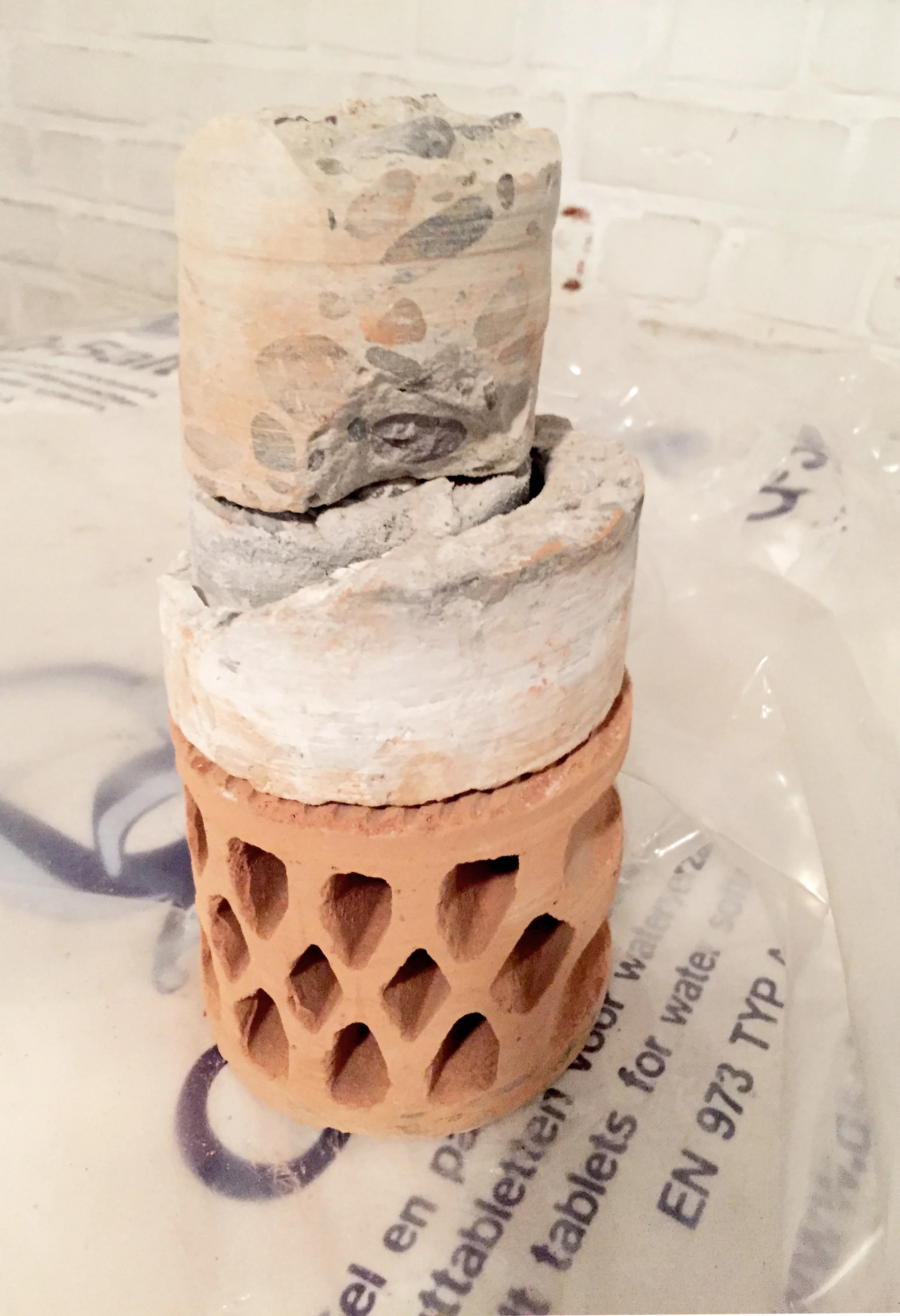

2017-05-30 14.47.42.jpg




Noemi Chausidissoo, tpa, sgk
